Overview Heavy-duty performance in a compact envelope The JA10VSO/32 is a swashplate-type axial piston variable pump designed for open circuits. Its rotating group, controller and housing are engineer…

Inquire Now
Product Introduction
Overview

Heavy-duty performance in a compact envelope

The JA10VSO/32 is a swashplate-type axial piston variable pump designed for open circuits. Its rotating group, controller and housing are engineered as one system: pressure up to 280 bar continuous, 350 bar peak and 315 bar intermittent (10% duty cycle) are available across all five sizes, so the same family covers everything from a 45 cm³ mobile circuit to a 180 cm³ industrial power unit.

Three mounting-flange options, four shaft ends, six service-port patterns and seventeen through-drive variants keep the installation work simple — and allow a second pump or a gear pump to be flange-mounted without an extra coupling.

280 barContinuous
45–180cm³/rev sizes
7Controller families
17Through-drive codes
802 N·mMax. torque

151 kW power density

Up to 802 N·m of torque at Vg max and 324 L/min flow at 1800 rpm — the 180 size replaces larger, heavier units.

Seven controller families

Pressure, remote pressure, pressure/flow, and pressure/flow/power control with adjustable cut-off — matched to the duty cycle of your machine.

Through-drive ready

Seventeen through-drive codes (ISO and SAE flanges) for tandem pumps or a flange-mounted gear pump — no extra bell housing required.

Stable at high pressure

Nitrided and hardened critical components — heat-treated in house — keep performance stable through long duty cycles at rated pressure.

Field-serviceable

Controllers and shaft seals are available as separate service parts, so a repair on site does not mean replacing the whole pump.

Configured per order

ISO 3019-2/1 and SAE flanges, metric and SAE shafts, SAE straight-thread or UNC ports — configured per order, not per stock.

Technical data

Specifications — sizes 45 to 180

JA10VSO/32 specifications for sizes 45, 71, 100, 140 and 180
Parameter4571100140180
Displacement Vg maxcm³/rev4571100140180
Max. speed nmaxrpm18001800180018001800
Max. flow at nmaxL/min81128180252324
Max. flow at 1500 rpmL/min67.5106.5150210270
Max. power at nmaxkW · Δp = 280 bar3859.784118151
Max. power at 1500 rpmkW · Δp = 280 bar31507098125
Max. torque TmaxN·m · at Vg max200317446624802
Weight (without through drive)kg3047697378

Theoretical values at Δp = 280 bar. Power and torque depend on volumetric and mechanical efficiency; the intermittent rating of 315 bar is permissible for 10% of the duty cycle.

Controllers

Match the control to your duty cycle

Controller options, setting ranges and control oil consumption
CodeControl functionSetting rangeControl oil use
DRPressure control — holds system pressure constant, the pump delivers only what the circuit needs35–280 bar≈ 3 L/min
DRGRemote pressure control — same as DR, set remotely by a relief valve on port X20–280 bar≈ 4.5 L/min
DFRPressure & flow control — load-sensing with orifice in the X channel (Δp 14 bar)35–280 bar3–4.5 L/min
DRS (DFR1)Pressure & flow control — X port plugged, for circuits without a bleed orifice35–280 bar≈ 3 L/min
LA10 / LA10GPressure & power control with adjustable pressure cut-off — constant drive torque under varying loadLA10: 35–80 bar
LA10G: 80–200 bar
≈ 5.5 L/min
LA5SPressure, flow & power control — flow control possible below the power curveOn request≈ 5.5 L/min
LA5DFlow & power control — constant torque drive with pressure cut-offOn request≈ 5.5 L/min

Hysteresis and repeatability ≤ 3 bar for DR / DRG. The same circuits are shown in the technical section as LAXD / LAXDG / LAXS / LAXDS — please quote the ordering code when enquiring.

Ordering code

How to build a model code

JA10VS71DR/32R–VPB22UB8
Ordering code positions and available options
PositionOptions
ModelJA10VS(O) — swashplate axial piston variable pump, open circuit
Displacement45 · 71 · 100 · 140 · 180 (cm³/rev)
ControllerDR · DRG · DFR · DRS · LA10 · LA10G · LA5S · LA5D
Series/32
Direction of rotationR — clockwise  |  L — counter-clockwise (viewed on shaft end)
Shaft sealV — FKM (fluoro rubber)  |  P — NBR (nitrile rubber)
Shaft endP — metric parallel key  |  S — SAE splined, flat root  |  R — SAE splined  |  K — SAE parallel key
Mounting flangeA — ISO 3019-2, 2-hole  |  B — ISO 3019-2, 4-hole  |  C — ISO 3019-1, 4-hole
Service line ports12 · 22 · 61 · 62 · 41 · 42 — SAE straight-thread / UNC patterns; the second figure in each pair denotes through-drive preparation. Confirmed per size on the dimension drawing.
Through driveN00 — without through drive  |  B2 · B3 · B4 · E1 · B8 · B9 — ISO flange for a second pump  |  B7 · 01 · 52 · 68 · 04 · E2 · 15 · 24 · 96 · 17 — SAE flange for a second pump or gear pump

Two-pump supply: join both model codes with “+”, e.g. A10VSO100DR/32R-VPB22UB8 + A10VSO71DFR/32R-VSB12N00.

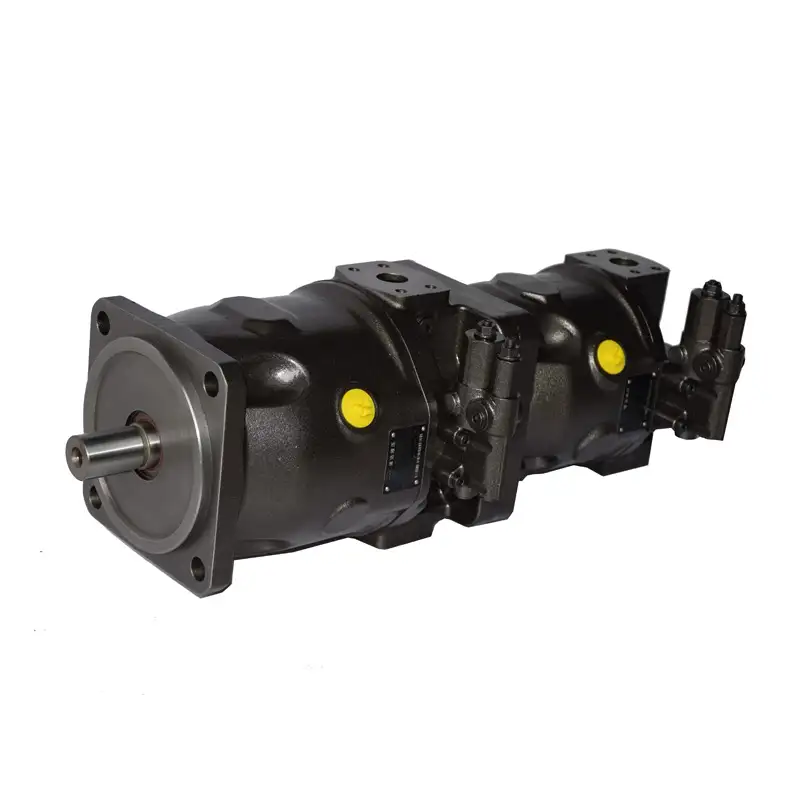

JA10VSO/32 tandem pump assembly with through-drive flange
Tandem & combination pumps

Two pumps, one mounting pad

A through-drive flange lets a second JA10VSO/32 — or an external gear pump — be mounted directly on the rear of the first pump. Both pumps share one bell housing and one drive coupling, which shortens the power unit and removes a shaft alignment point.

ISO 80 to ISO 180 flanges cover second pumps from size 18 to 140, and SAE A to SAE D flanges cover gear pumps such as the 1PF2G2 and 1PF2G3. Order both pumps as a factory-assembled unit by combining the two model codes with a “+”.

Installation & operation

Conditions for a long service life

  • Hydraulic fluid: mineral oil (HLP / HM); optimum viscosity 16–36 mm²/s, permissible range 10–1000 mm²/s for cold starts.
  • Fluid temperature: −25 °C to +90 °C at the drain port; keep the reservoir within 15 °C of ambient in continuous duty.
  • Cleanliness: NAS 1638 class 9 or ISO 4406 18/15 minimum; a 10 µm pressure filter on the outlet is recommended.
  • Inlet pressure: 0.8 bar absolute minimum (1 bar for sizes 140 and 180), 10 bar maximum at port S.
  • Case drain: maximum 0.5 bar above inlet pressure and never more than 2 bar absolute — use the highest drain port.
  • Mounting: below-tank, above-tank or in-tank installation; maximum suction height 800 mm; the housing must stay filled with oil.
  • Commissioning: fill the housing through the upper drain port before the first start, then vent at low pressure without load.
  • Drive: flexible coupling with misalignment within the coupling maker’s limits; no radial or axial load on the shaft end.
Applications

Where the 32 series is installed

  • Pile driving rigs
  • Mining & tunnelling machines
  • Cranes and hoisting equipment
  • Excavators & construction machinery
  • Metallurgical equipment
  • Environmental & recycling machinery
  • Hydraulic power units
  • Machine tools

Data are theoretical values taken from the JA10VSO/32 & /31 series catalogue (edition 2025-09). Dimensions, weights and controller availability may vary by size — please refer to the dimension drawing for the selected code. Jiangsu Jinrun Hydraulic Co., Ltd. reserves the right to change specifications without notice.
